- Size: 480*400*570mm
- Place of Origin: Henan, China (Mainland)
- Brand Name: Nanbei

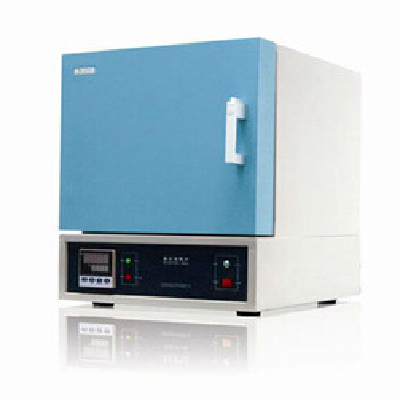

- Model Number: NB2-2.5-10T
- Weight: 0.300 kg
Scope of application:
The products are widely applied in the chemical analysis and physical determination for labs in industrial and mining enterprises, scientific research institutes, etc; sintering stoneware, porcelain and ceramics ;high-temperature heat treatment for metal annealing quenching and tempering
Product solution:
We offer various series of standardized products to satisfy the requirements of most customers. We can also provide solutions tailored to your unique requirements on heat treatment. We are ready to serve you upon request.
Parameters:
Model | NB2-2.5-10G NB2-2.5-10T | NB2-4-10G NB2-4-10T | NB2-8-10G NB2-8-10T | NB2-10-10G | NB2-12-10G | NB2-18-10G |
Hearth dimensions(mm) | 200X120X80 | 300X200X120 | 400X250X160 | 300X200X300 | 500X300X200 | 500X500X800 |
Furnace volume | 2L | 7.2L | 16L | 18L | 30L | 200L |
Design temperature | 1000 °C | |||||
Highest temperature | 950 °C | |||||
Temperature control precision | ±1 °C | |||||
Temperature control method | PID temperature controller | |||||
Temperature rise rate | ≤15°C/min for T-series,≤50°C/min for T-series | |||||
Input power | 2.5kw | 4kw | 8kw | 10kw | 12kw | 18kw |
Source voltage | AC220V | AC220V | AC380V | AC380V | AC380V | AC380V |
Heating elements | Fe-Cr alloy heating wire (0Cr25AL5) | |||||
Sensor | K-type | |||||
Dimensions(mm) | 480X400X570 | 590X520X620 | 730X570X720 | 550X770X550 | 770X880X560 | 900X1100X1200 |
Price |
|
|
|
|
|
|
